For CONTEC TS13 Electric Patient Display Monitor Medical Equipment
$1,500.00

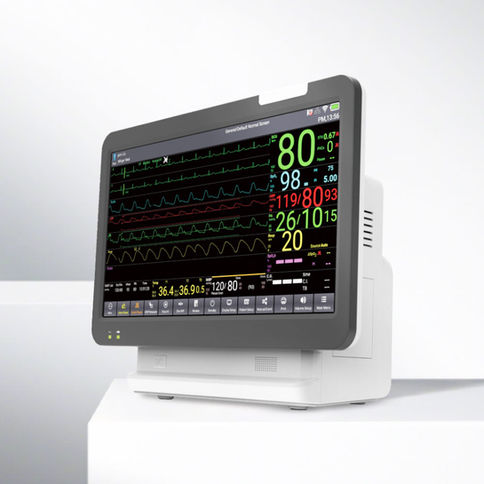

Plug-in Patient monitor
Introduction
The monitor is applicable for clinical monitoring in operating room, postoperative observation room, ICU/CCU ward, emergency
room,etc. of adult, pediatric and neonate. The patient's vital parameters (ECG (including ST-segment measurement and arrhythmia
analysis), RESP, SpO2, PR, NIBP, TEMP, IBP and CO2, etc.) can be monitored. Monitored information can be displayed,
reviewed,printed and stored..
Function |
1)15.6" high-definition touch screen design, easy and convenient to operate, elegant and concise in appearance. |
2)Independent physiological and technical alarm function, convenient for medical staff to quickly know patient’s condition. |
3)Luminous “ON / OFF” button design, convenient to operate at night. |

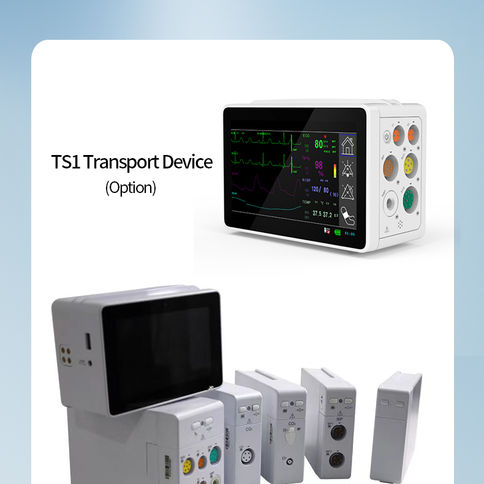

4)Modular design: the modules can be configured and combined flexibly and conveniently, expanded and upgraded at any time, meetsthe monitoring requirements of different departments on different parameters. |
5)Support dynamic hot-plugging parameter module: no need to restart the device, plug-and-play, change the monitoring parameters at |
6)Adopt high-performance processor, stable, reliable and fast to process information. |
7)Patient information can be rapidly entered, patient type (adult / neonate / pediatric) can be quickly switched, meets the |
| 8)Abundant analysis functions: 23 arrhythmia, full-lead ST-segment and pacing analysis; multiple calculation functions (such as calculation of drug concentration, titration table, hemodynamics, ventilation, oxygenation, renal function, etc.). |
9)With the functions of waveform freezing, holographic waveform storage and review. |
10)Automatic data storage in case of power failure; optional built-in memory card, achieves large-capacity data storage. |
11)With HDMI expansion interface, the display screen can be connected according to clinical requirements. |
12)Built-in large-capacity detachable lithium battery, ensures uninterrupted monitoring. |
13)Fanless design, ensures no noise and low power consumption during working. |
14)3-channel built-in recorder used to print real-time waveform is optional. |
15)Connect to Central Monitoring System developed by our company by WiFi / Wired, convenient to transmit patient’s real-time data. |
16)Standby mode, be applied to ICU, avoids affecting patient’s rest, one-button switching, reduces the workload of medical staff. |
Performance
(1)ECG
Lead type:
3-lead: I, II, III
5-lead: I, II, III, aVR, aVL, aVF, V
12-lead: I, II, III, aVR, aVL, aVF, V1,V2,V3,V4,V5,V6
Gain: 2.5 mm/mV, 5.0 mm/mV, 10 mm/mV, 20 mm/mV, 40 mm/mV
Scan speed: 12.5 mm/s, 25 mm/s, 50 mm/s
HR
Measurement and alarm range:
Adult: 15 ~ 300 bpm
Pediatric/neonate: 15 ~ 350 bpm
Resolution: 1 bpm
Accuracy: ± 1 % or ± 1 bpm, whichever is greater
ST-segment detection
Measurement and alarm range: - 2.0 mV ~ + 2.0 mV
Accuracy: - 0.8 mV ~ + 0.8 mV: ± 0.04 mV or ± 10 %, whichever is greater
Other range: unspecified
Arrhythmia analysis: 23 kinds
Pacemaker: yes
(2)RESP
Measurement mode: R-F (RA-LL) impedance
Respiration rate:
Measurement range:
Adult: 0 rpm ~ 120 rpm
Pediatric/neonate: 0 rpm ~ 150 rpm
Resolution: 1 rpm
Accuracy: 7 ~ 150 rpm, ± 2 rpm or ± 2 %, whichever is greater;
0 ~ 6 rpm, unspecified
Apnea alarm: 10 ~ 120 s, not alarm
Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50mm/s
(3)NIBP
Measurement mode: Oscillometry
Working mode: Manual/AUTO/Continuous
Measurement interval in AUTO mode: 1 min, 2 min, 2.5 min, 3 min, 5 min, 10 min, 15 min, 20 min, 30 min, 1 h, 1.5 h, 2 h, 3 h, 4
h,8 h
Measurement period in Continuous mode: 5 minutes
Measurement and alarm range: 10 ~ 270 mmHg
Resolution: 1 mmHg
Cuff pressure accuracy: ± 3 mmHg
Measurement accuracy:
Maximal mean deviation: ± 5 mmHg
Maximal standard deviation: 8 mmHg
Over-pressure protection:
Adult mode: 297 ± 3 mmHg
Pediatric mode: 240 ± 3 mmHg
Neonatal mode: 147 ± 3 mmHg
(4)CONTEC SpO2
Measurement range: 0 % ~ 100 %
Resolution: 1 %
Accuracy: 70 % ~ 100 %, ± 2 %;
0 % ~ 69 %, unspecified
PR
Measurement and alarm range: 25 ~ 250 bpm
Accuracy: ± 2 bpm or ± 2 %, whichever is greater
(5)Nellcor SpO2
Measurement range: 1 % ~ 100 %
Measurement accuracy: 70 % ~ 100 %: ± 2 % (adult / pediatric)
70 % ~ 100 %: ± 3 % (neonate)
0 % ~ 69 %: unspecified
Nellcor PR
Measurement range: 20 ~ 300 bpm;
Measurement accuracy: 20 ~ 250 bpm, ±3 bpm;
251 ~ 300 bpm: unspecified;
Upper limit of alarm: upper limit - 2 ~ 300 bpm;
Lower limit of alarm: 20 bpm ~ lower limit + 2 bpm
(6)Masimo SpO2
Measurement range: 1 % ~ 100 %
Measurement accuracy:
70 % ~ 100 %: ± 2 % (adult / pediatric, under conditions of no motion), ± 3 % (under conditions of motion)
70 % ~ 100 %: ± 3 % (neonate, under conditions of no motion)
1 % ~ 69 %: unspecified
Masimo PR
Measurement range: 25 ~ 240 bpm
Measurement accuracy: ± 3 bpm (under conditions of no motion), ± 5 bpm (under conditions of motion)
Upper limit of alarm: upper limit - 2 ~ 240 bpm
Lower limit of alarm: 25bpm ~ lower limit + 2 bpm
(7)TEMP
Channel: dual-channel
Measurement range: 0 ~ 50 ℃
Resolution: 0.1 ℃
Accuracy: ± 0.1 ℃
(8)CO2
Measurement mode: mainstream or sidestream
CO2 measurement range: 0 ~ 150 mmHg
CO2 resolution: 0.1 mmHg: 0 ~ 69 mmHg
0.25 mmHg: 70 ~ 150 mmHg
Accuracy:
0 ~ 40 mmHg: ± 2 mmHg
41 ~ 70 mmHg: ± 5 %
71 ~ 100 mmHg: ± 8 %
101 ~ 150 mmHg: ± 10 %
AwRR measurement range:
Sidestream: 2 ~ 120 rpm
Mainstream: 2 ~ 150 rpm
AwRR accuracy: ± 1 rpm
Apnea alarm: yes
(9)IBP
Channel: 4-channel
Label: ART, PA, CVP, RAP, LAP, ICP, P1, P2
Measurement and alarm range: -50 ~ 300 mmHg
Resolution: 1 mmHg
Accuracy: ± 2 % or 1 mmHg, whichever is greater
(10)Power supply: 100 ~ 240 V ~ 50/60 Hz
(11)Safety class: class I, defibrillation-proof type CF applied part
(12)Waterproof degree: IPX2
Accessories
1)TS13 multi-parameter module
2)ECG cable: 5-lead, American standard, TPU
3)SpO2 probe (integrated) Digital fingertip SpO2 probe for adult (CMS-N-SPO2 6P, 3M, yellow)
2)TEMP probe :R25=2.252K TEMP probe, skin surface type, CMS-N-TEMP 2P, PVC, L=3M
5)NIBP cuff:BP extension tube, L=3M
6)Adult cuff (25 ~ 35 cm)
7)EtCO2
8)IBP
